Patch Fittings
Patch fittings are a frameless glass concept, which evolved as modern interior and exterior design option for commercial and residential projects. Patch fittings concepts are a collaboration of toughened glass and glass architectural hardware. Patch fittings frameless concepts have various types like frameless glass doors, frameless fixed glass, Over panel glass with different design options like top and bottom patch fittings, top patch fittings bottom insert and top and bottom inserted to the floor and roof respectively. Patch fittings needs best support from the civil engineering both in the top and bottom.
In patch fittings concept silicon sealants are used in between the segment toughened glasses to act as a cushion between the glass panels. Toughened glasses are fabricated for patch fittings concept with tailor made glasses. Cutouts and holes are provided to fix the glass architectural hardware patch fittings. Frameless patch fittings glass doors act as security control in major interior and exterior glass partitions. In patch fittings doors many hardware are used like top patch fittings, bottom patch fittings, patch fittings lock, patch fittings clamps and lock. Any glass design can be made with the help of frameless patch fittings mainly used for glass partition work in interior and exterior projects. Patch fittings providers solid strength and durability for glass partition work based on architecture designs in modern office partitions.
In patch fittings architectural hardware are made of forged brass and 316 stainless steel cover plates. Patch fittings is the best solution available till date with many designing options available for the architecture and interior designers. Glass partition work is one of the premier replacement for all other partition works. Apart from wall glass partition, glass partition can be also used as roof partition and floor partition works involving various hardware designs and models to suit almost all the dream designs. In near future glass partition work will dominate all rest of the partition work and the complete building can be glass made with the emerge of glass partition concept.

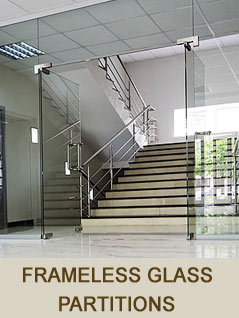

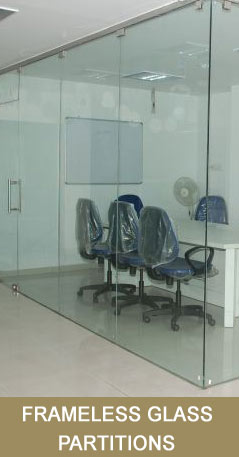

Frameless Glass Partitions
Glass partition with 8/10/12mm toughened glass and laminated toughened glass with options of swing and sliding doors. Full height partition and half height partitions for commercial & residential layouts. Transparent and opaque overviews can be obtained with sand blasting and acid-etching/3M stickering.
Patch fittings are the glass architectural hardware which revolutionaries frameless toughened glass partition for the office interior and elevation glazing with glass doors and fixed glass.
Fabricated Saint-Gobain toughened glasses of 4mm, 6mm, 8mm, 10mm, 12mm, 15mm, and 19mm thickness clear and extra clear glasses. Colour tinted toughened glasses of blue, brown and grey shades. Laminated glasses of various thickness specifications. Milk white glass and paint back toughened glass. All the glasses with value added service of fabricating exclusively for interior and exterior concepts based on proposed designs. All the joints and corners of the toughened glasses are packed with silicon sealants of various colors like white, black or clear.
Types of Frameless glass partitions
Top and bottom patch fittings
Patch fitting hardware like corner connector and side connectors used both on top and bottom of the partition toughened glass.
Top patch fittings and bottom insert
Patch fittings hardware like corner connectors and side connectors used only on the top of the partition toughened glass and bottom inserted in to the floor about 15 to 30mm.This can be also done with aluminum profile of 12mm depth which will not be visible.
Glass doors with over panel
Glass doors above standard size of the height is filled with fixed glass over the door called over panel glass. various hardware design options available to suit the purpose like over panel patch,3way connector and more.
Patch fittings Double leaf Doors
Main entrance with double leaf frameless doors with over panel glass or without over panel glass.
Sliding Doors
Sliding glass doors for the partition with manual sliding mechanism and floor guide to serve the purpose at both interior and exterior partitions. Glass thickness can 8mm/10mm/12mm toughened glass with door nob of various designs.
